Direct metal laser sintering (DMLS)

A laser melts fine metal powder layer by layer in an inert atmosphere, producing dense metal parts with internal channels and lattices.

Ask about this method All 3D printing methods

Metal parts emerging from the powder bed after a DMLS build. Representative process photo · René Volfík · CC BY-SA 4.0 · Wikimedia Commons

How it works

Direct metal laser sintering (DMLS), step by step.

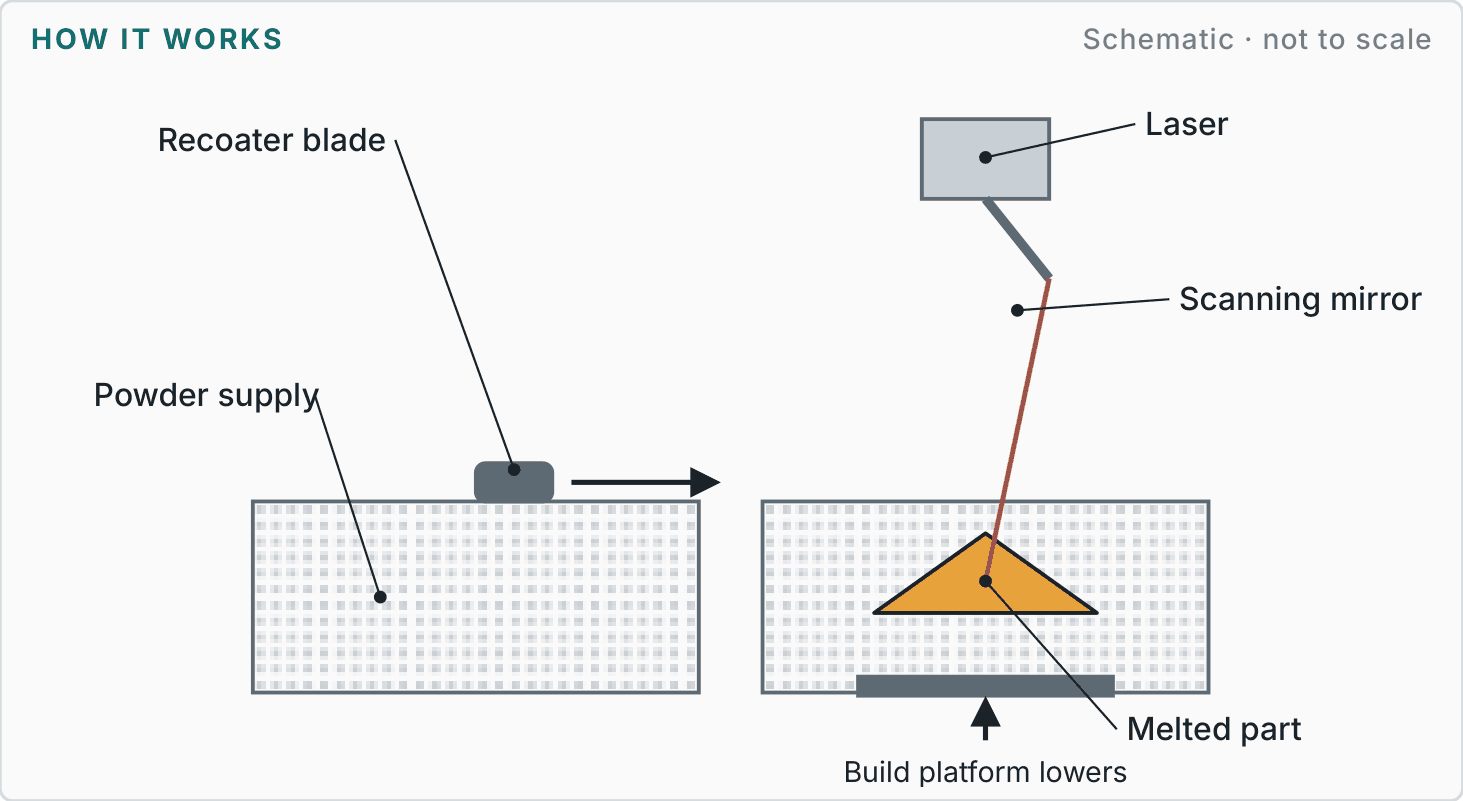

A labelled schematic of the process (not to scale), and the four steps every job goes through.

Labelled diagram showing how direct metal laser sintering (dmls) works — Schematic · not to scale. Drawn by TCI Group.

STEP 01

Spread

A recoater spreads metal powder.

STEP 02

Melt

The laser melts each cross-section.

STEP 03

Stress relieve

Heat treat on the build plate.

STEP 04

Remove & finish

Cut from plate, remove supports, machine.

Reference figures

What to expect.

Typical industry values to help you plan. We agree the figures for your part on the drawing.

Tolerance±0.13 mm + 0.002 mm/mmTypical

FinishRa 5–25 µmOrientation dependent

Min Feature~0.5 mmPositive features

DensityNear fullFully dense metal

Materials	Stainless 316L and 17-4PH, aluminium AlSi10Mg, titanium Ti6Al4V, Inconel 625/718, maraging steel.
Finishes	Rough as built; bead blasted, machined, polished or heat treated.
Design guidance	Self-supporting angles above about 45°. Add machining stock on critical faces. Use conformal cooling channels in mould inserts.
Best suited to	Conformal-cooled mould inserts, aerospace brackets, manifolds and medical parts.
Watch-outs	High cost per part; flatness and threads usually need machining.
