Strain reliefs
Tapered boots that stop cables snapping at the connector.
Overmoulding · Cable and connector overmould
Cable and connector overmoulding.
The point where a cable enters a connector or device is where most cables fail. An overmoulded silicone body seals that point, spreads the bending load and makes the join look like it was meant to be there.
The detail
Why silicone for cables
Silicone stays flexible in the cold, tolerates heat, and bonds to many cable jackets with the right preparation. That makes it a good choice for medical leads, outdoor sensors, marine equipment and anything that gets flexed thousands of times.

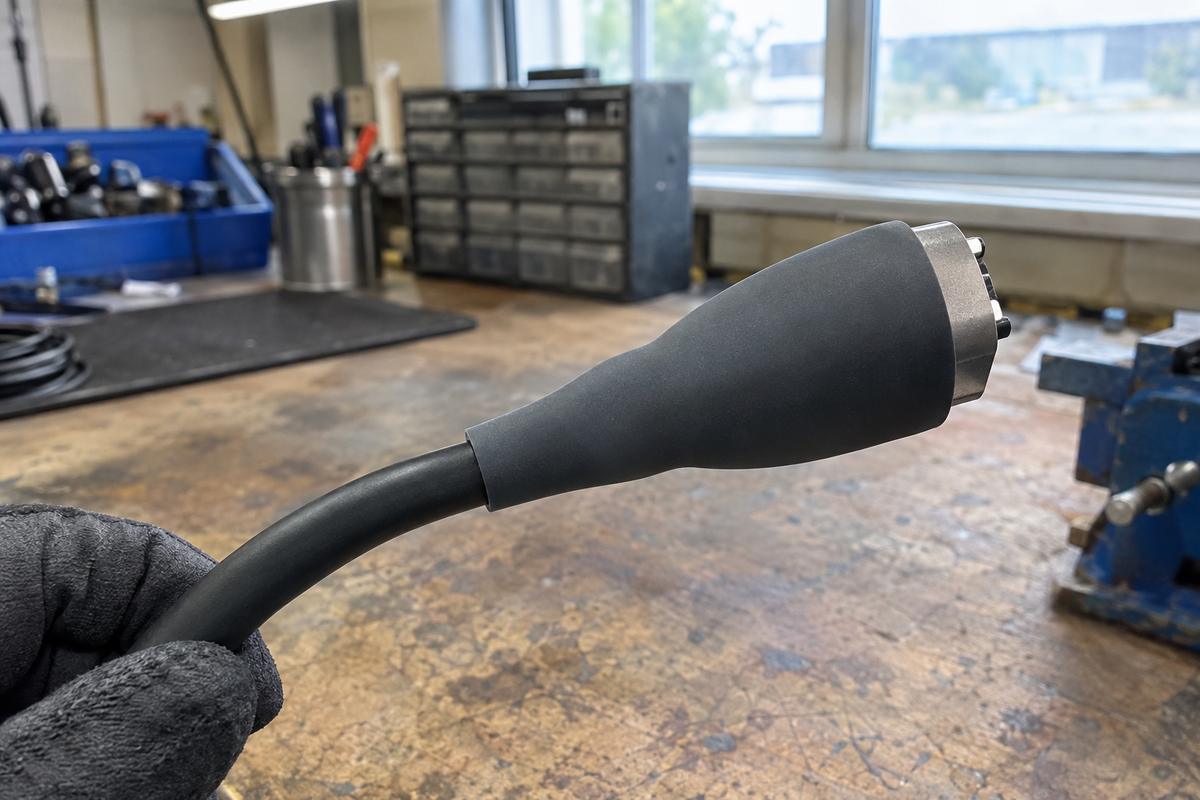

The design work is in the transition: how stiff the overmould is at the connector end, how it tapers towards the cable, and how it grips the jacket so water can't wick along underneath.
Where it fits

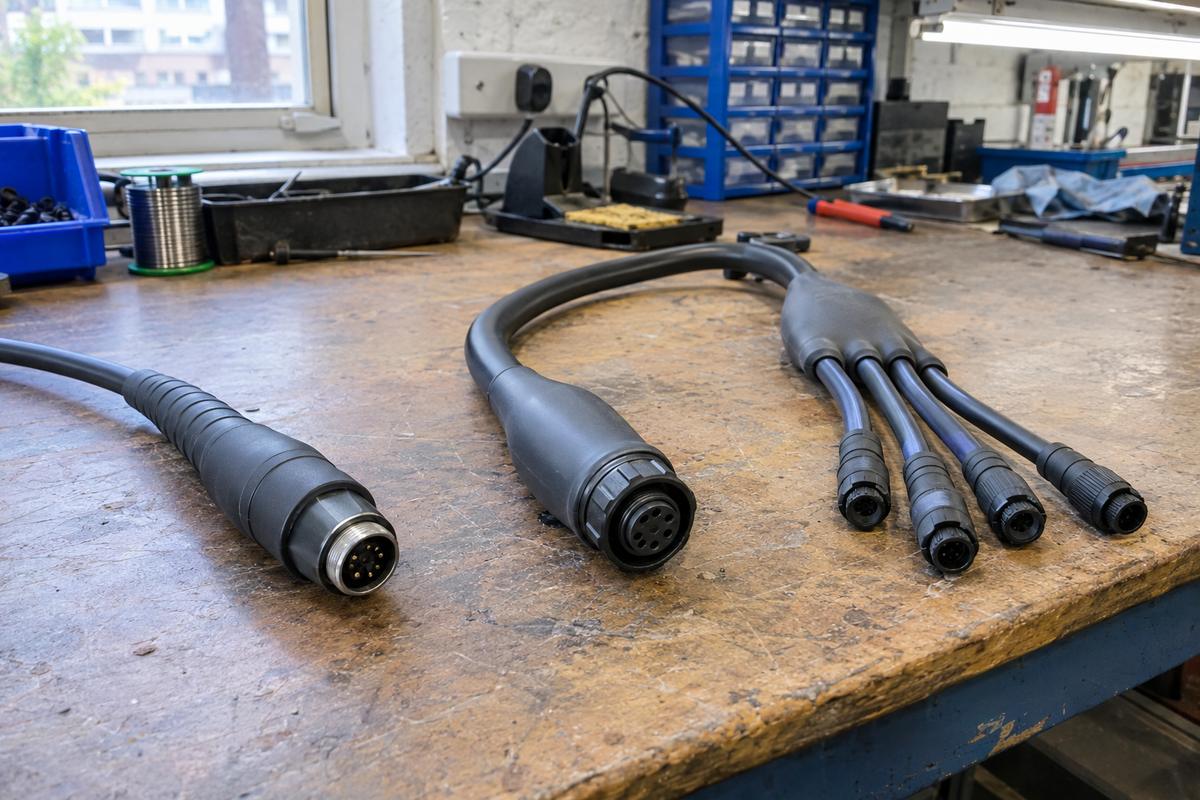

Typical jobs
Sealed connectors
Overmoulded connectors for wet and washdown environments.
Breakouts and splices
Where one cable splits into several, sealed in one body.
How we run it
How we run it
Cable and jacket review
Jacket material, diameter tolerance and heat limits checked.
Tool with cable clamping
The tool grips the cable to seal the cavity and hold position.
Mould at a safe temperature
Grade and cure chosen so the cable and connector aren't damaged.
Pull and continuity checks
Strain and electrical continuity checks agreed with you and recorded.
To quote it
To quote it
Sample cable assemblies
Including some for trials we can cut up.
Environment
Water, UV, oils, temperature, flexing.
The look you want
Colour, texture, any moulded logo.
Your test
Flex cycles, pull force or ingress test.
At a glance
The ideas in pictures.
How overmoulding works
Swipe to see the whole diagram
From drawing to delivered parts
- 01Drawing or sampleYour part and where it is used
- 02Material and routeCompound and process agreed
- 03PrototypeReal parts to test
- 04Sign-offYou approve the samples
- 05Production toolBuilt for your volumes
- 06Batches and checksInspected and delivered
Swipe to see the whole diagram
Questions
What people usually ask.
Do you make the cable assemblies too?
We overmould assemblies supplied by you or by a partner. We can coordinate the whole assembly through our partner network if that's simpler.
Is silicone better than PVC or TPU for this?
For flexibility, temperature range and feel, often yes. For abrasion resistance, not always. We'll talk it through.
