Manufacturing services · Chapter F · Method 34

Multi Jet Fusion (MJF)

Inkjet heads print fusing and detailing agents onto nylon powder, then infrared energy fuses each layer. Fast and consistent for production quantities.

Ask about this method All 3D printing methods

Multi Jet Fusion production printer. Representative process photo · Hkm1233 · CC BY-SA 4.0 · Wikimedia Commons

How it works

Multi Jet Fusion (MJF), step by step.

A labelled schematic of the process (not to scale), and the four steps every job goes through.

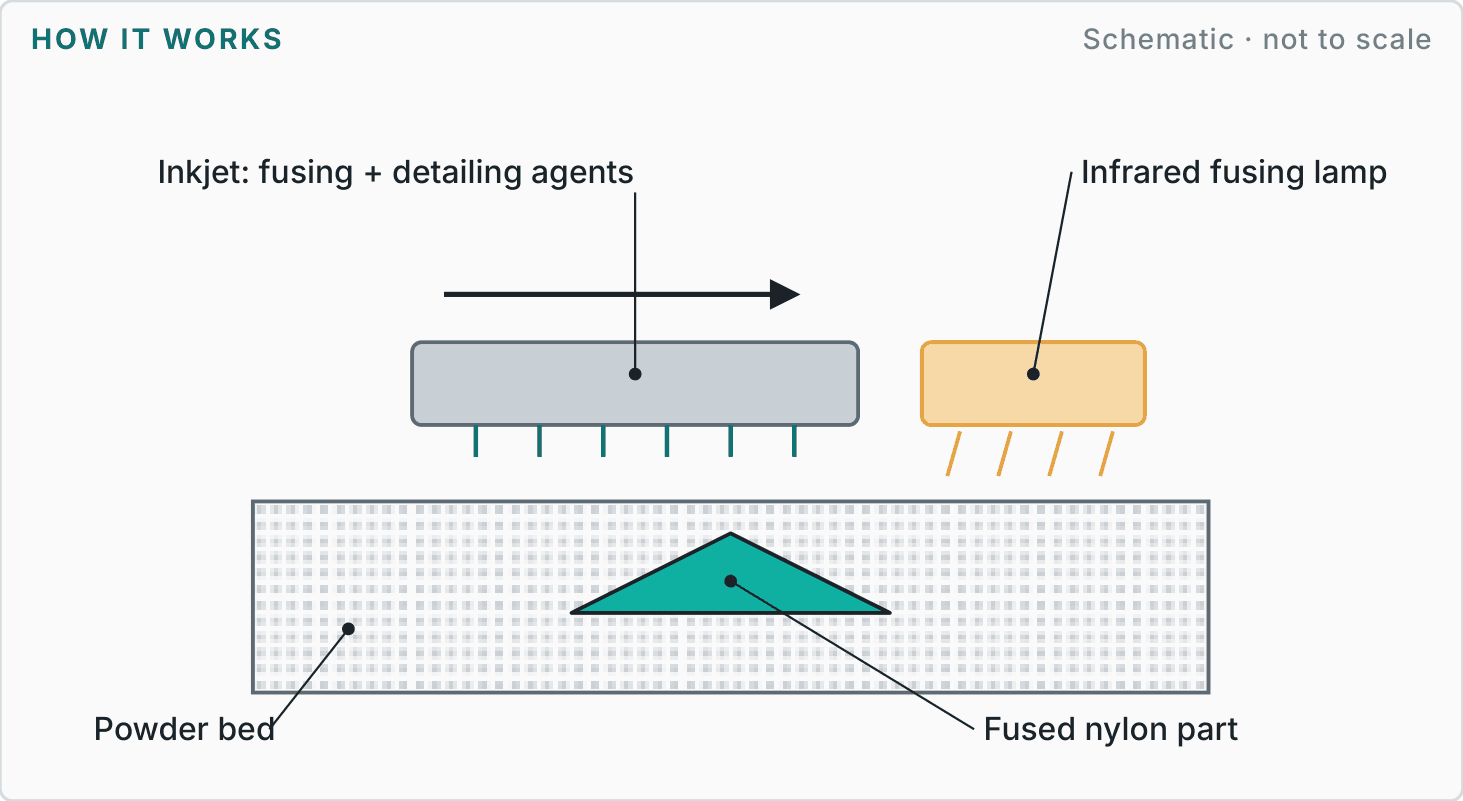

Labelled diagram showing how multi jet fusion (mjf) works — Schematic · not to scale. Drawn by TCI Group.

STEP 01

Spread

A thin layer of nylon powder is spread.

STEP 02

Print agents

Fusing agent marks the part; detailing agent the edges.

STEP 03

Fuse

Infrared lamps fuse the marked areas.

STEP 04

Cool & clean

Cool the build unit; bead blast parts.

Reference figures

What to expect.

Typical industry values to help you plan. We agree the figures for your part on the drawing.

Production±0.25 mm XYUnder 30 mm, reviewed

Prototype±0.70 mmUnder 30 mm, rigid

FinishRa 10–14 µmAs printed

Min Feature~0.8 mmRaised features

Materials	Nylon 12, Nylon 11, glass-filled PA12, PP and TPU.
Finishes	Grey as printed; dyed black recommended for production; vapour smoothed.
Design guidance	Avoid very thick or broad flat sections. Holes under 1 mm may close. Thick parts may be hollowed with a 4 mm wall.
Best suited to	End-use housings, clips, brackets and batch production of small parts.
Watch-outs	Natural grey colour can vary; dyeing helps consistency.

Other methods in 3D printing

Previous: Selective laser sintering (SLS)Next: Stereolithography (SLA)

Next step

Not sure this is the right route?

Send a sketch, photo, sample or CAD file with your quantity and target date. We will recommend the most sensible route and explain the trade-offs before quoting.

Start an enquiry

Reference figures are typical published industry values for planning, not a guarantee; final tolerances, materials and finishes are agreed in writing for each project.
