Precision injection.

Rubber moves, shrinks and flexes, so precision in silicone means something different from precision in metal. It means parts that come out the same, batch after batch, and fit the thing they're meant to fit.

Precision injectionVariant
Silicone injection (HCR)Parent route
DocumentedMaterial declaration

The detail

Precision in a flexible material

We don't publish tolerance figures as a headline. What's achievable depends on the grade, the wall section, the size of the feature and how the part is measured — a soft seal measured free-state behaves very differently from a firm part measured in a fixture.

What we do promise is a documented approach: shrinkage modelled for your grade, tool steel finished to suit, a measurement method agreed before first parts are measured against the drawing, and batch traceability available on request.

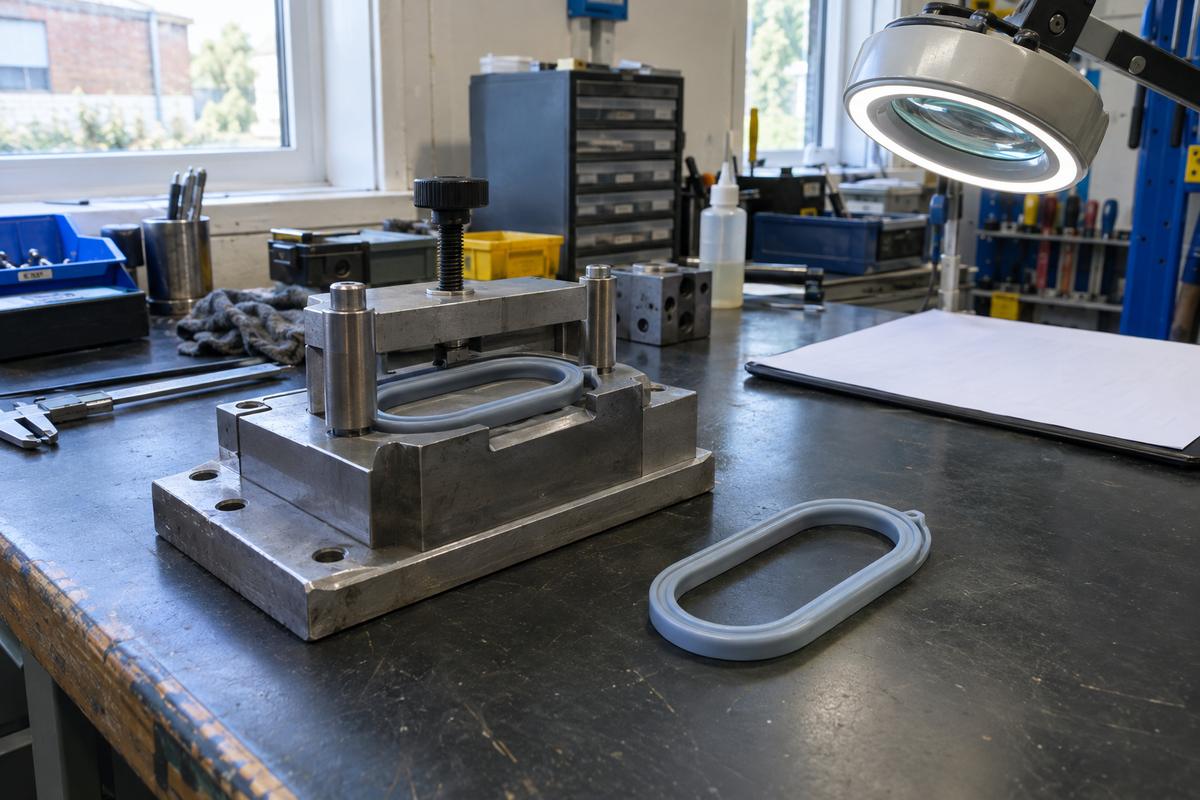

Illustrative example: Flexible silicone seal in a checking fixture beside a free state sample

Where it fits

Typical precision work

Seals with mating housings

Sealing lips and beads that must line up with a groove every time.

Fine ribs and features

Thin ribs, small bosses and textured areas that need consistent fill.

Parts for automated assembly

Components fed by machine, where consistent size matters more than absolute size.

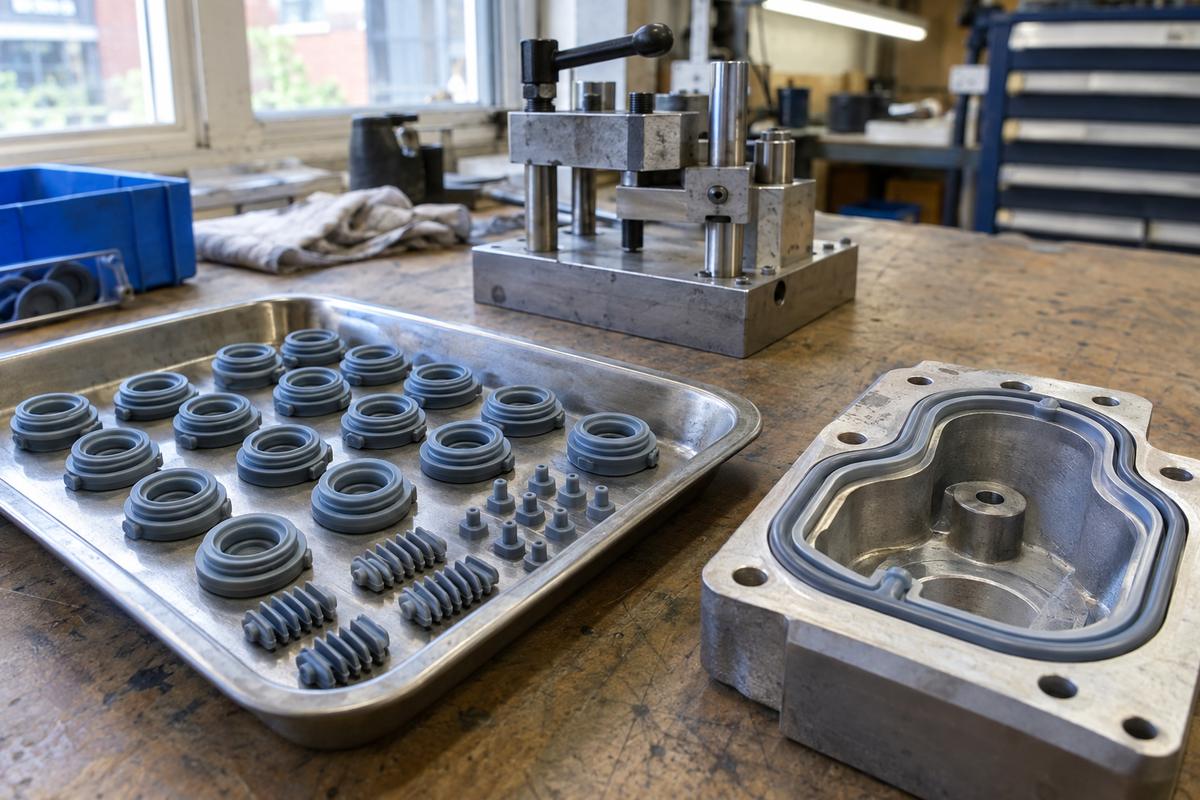

Illustrative example: Small precision silicone seals with fine ribs beside matching housings
Precision moulded parts with fine features

How we run it

How we make precision repeatable

  1. Agree the measurement method

    Which features matter, how they're measured, free-state or fixtured. Written down before the tool is cut.

  2. Tool for your grade's shrinkage

    Cavity dimensions allow for the shrinkage of the specific grade you've chosen.

  3. Tight process windows

    Temperature, pressure and cure time held in a narrow window and recorded.

  4. Batch measurement

    First parts from each tool measured against the drawing, so drift is caught before it matters.

To quote it

What helps us quote

01

The critical features

Mark the handful of dimensions that really matter. Tightening everything adds cost without benefit.

02

The mating part

A sample or drawing of what it fits into tells us more than a tolerance block.

03

How you'll inspect at goods-in

We'll match our method to yours so results agree.

04

The grade

Different grades shrink differently. If it isn't fixed yet, we'll help choose. See our tolerances guide.

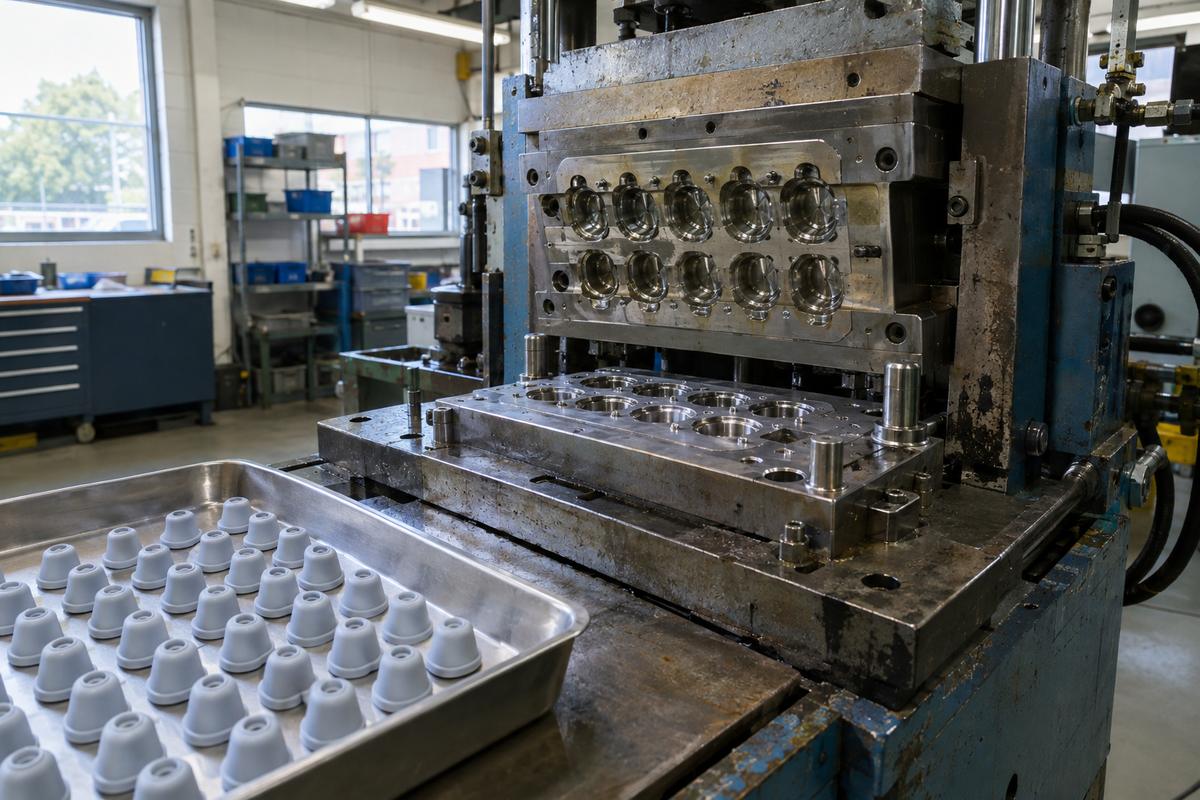

Illustrative example: Open multi cavity steel tool beside tray of identical silicone parts
Multi-cavity HCR injection tooling and parts

Questions

What people usually ask.

Why won't you give a tolerance figure up front?

Because an honest figure depends on your part. We'd rather agree a realistic, measurable specification for your geometry than quote a number that only applies to a test block.

Is LSR more precise than HCR?

Often more repeatable on thin, fine features. HCR can be just as consistent on firmer, chunkier parts. We choose per part.
