Pressurise
An intensifier pump raises water pressure.
Manufacturing services · Chapter D · Method 21
Waterjet cutting

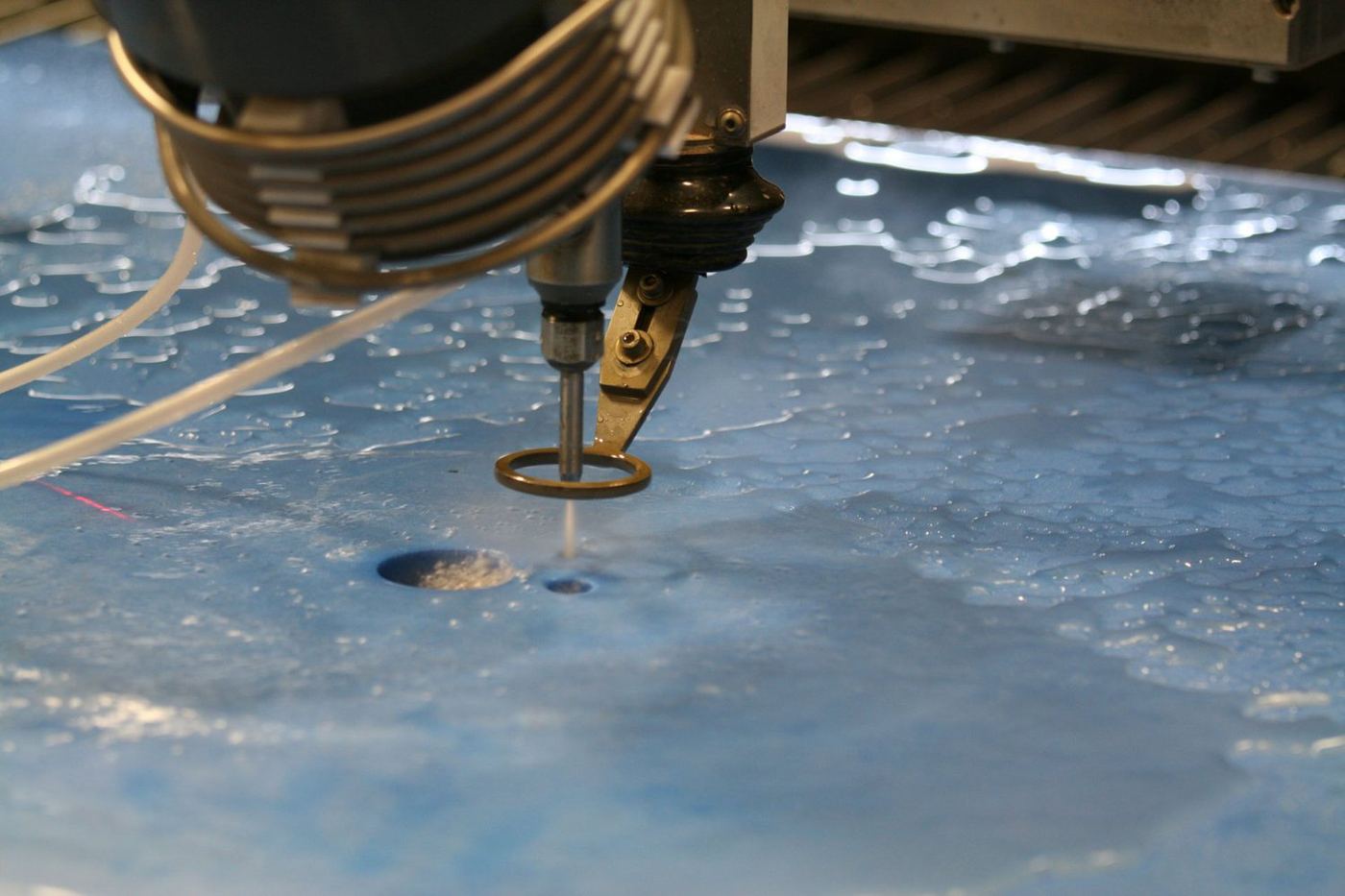

Ultra-high-pressure water, usually with garnet abrasive, erodes a narrow cut through almost any material with no heat-affected zone.
How it works
Waterjet cutting, step by step.

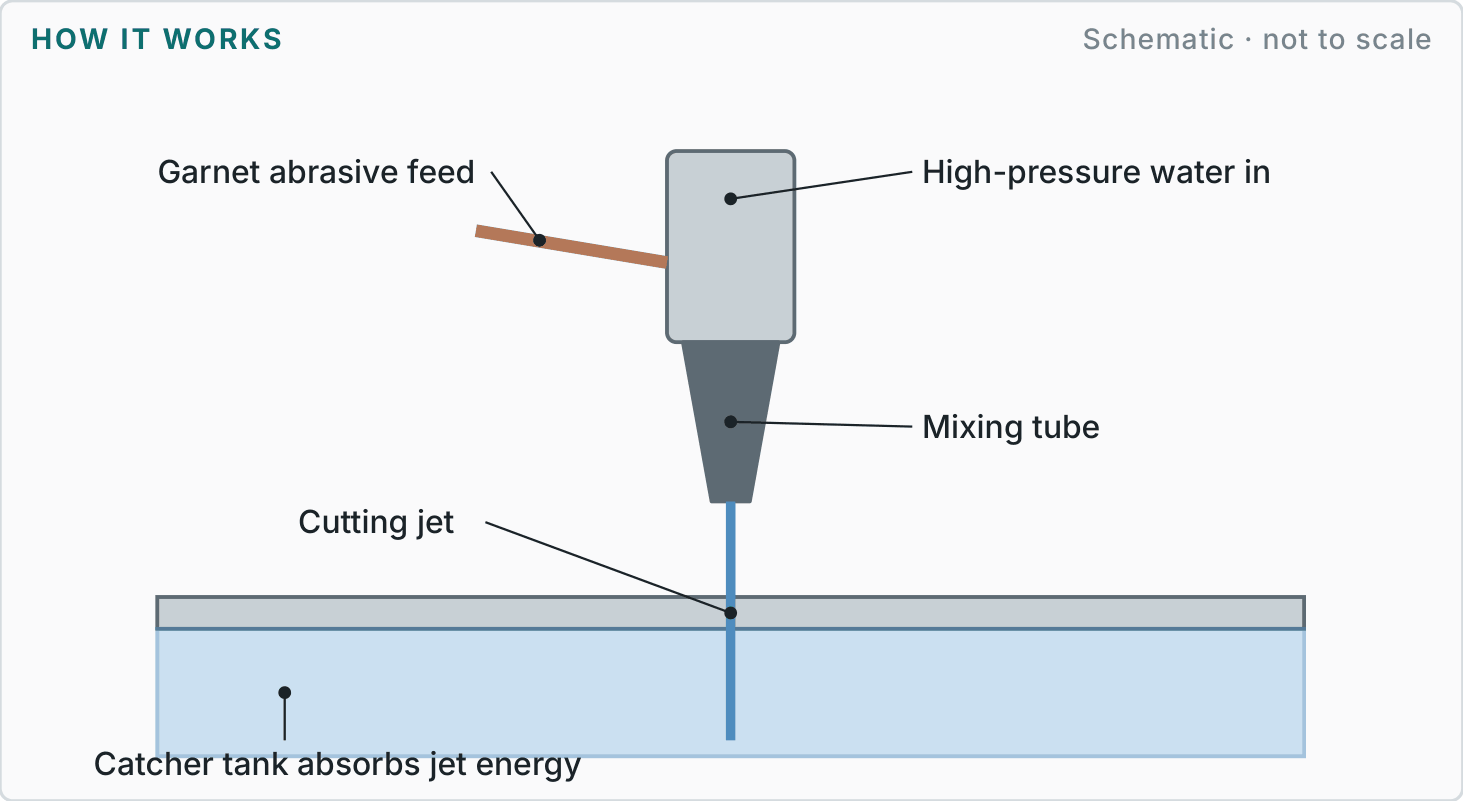

A labelled schematic of the process (not to scale), and the four steps every job goes through.
Mix abrasive
Garnet is drawn into the jet in the cutting head.
Cut
The jet erodes the material; a tank catches the energy.
Clean
Rinse, dry and deburr.
Reference figures
What to expect.
Typical industry values to help you plan. We agree the figures for your part on the drawing.
Tolerance±0.25 mmTop face
HeatNoneNo hardening or warping
ThicknessThick plateTaper on bottom face
MaterialsAlmost anyMetal, stone, rubber, glass
| Materials | Metals, stone, glass, composites, rubber, foam and thick plastics. |
|---|---|
| Finishes | Satin edge with vertical striations; frosted edges on clear plastics. |
| Design guidance |
|
| Best suited to | Gaskets, thick plate, stone, composites and rubber sheet parts. |
| Watch-outs | Slower than laser on thin sheet; wet process. |
