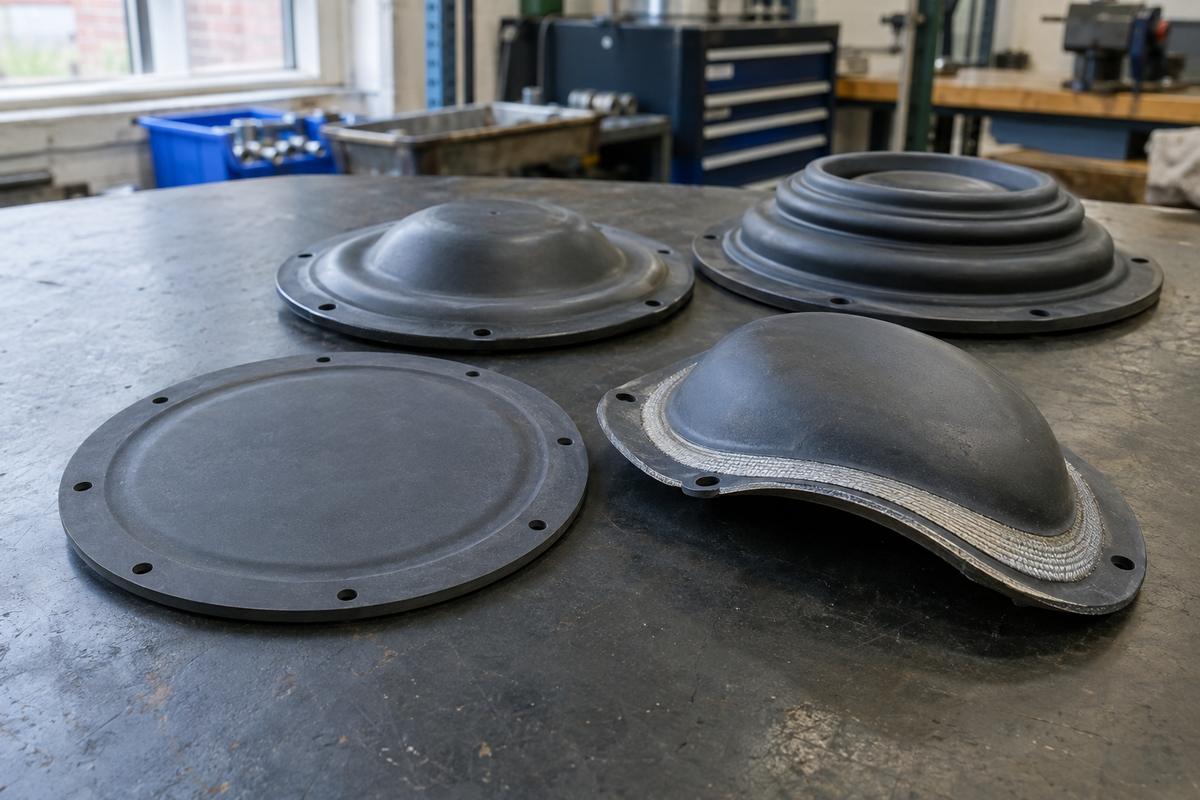

Flat and domed
Simple diaphragms for sensors and valves.
Valves and diaphragms · Diaphragms
Diaphragms.
A diaphragm flexes thousands or millions of times. Its life depends on material, section and how evenly it was moulded.
The detail
Designed to flex
Diaphragms fail at points of stress concentration: thin spots, knit lines and sharp transitions. Even wall sections and well-placed gates matter more than almost anything else.
Small diaphragms usually run in LSR; larger and reinforced diaphragms often run in compression moulding with a fabric layer moulded in.
Where it fits
Diaphragm types
Convoluted
Rolling diaphragms for longer stroke.
Fabric-reinforced
Reinforced diaphragms for higher pressures.
How we run it
How we make them
Stress review
Section and geometry checked for even flexing.
Process choice
LSR or compression, with reinforcement if needed.
Moulding
Gates and vents placed to avoid weak points.
Testing
Flex or pressure checks agreed with you.
To quote it
To quote it
Diaphragm drawing
Or a sample.
Pressure and stroke
Operating conditions.
Media
What it's in contact with.
Life requirement
Expected cycles.
At a glance
The idea in a picture.
From drawing to delivered parts
- 01Drawing or sampleYour part and where it is used
- 02Material and routeCompound and process agreed
- 03PrototypeReal parts to test
- 04Sign-offYou approve the samples
- 05Production toolBuilt for your volumes
- 06Batches and checksInspected and delivered
Swipe to see the whole diagram
Questions
What people usually ask.
Can you mould fabric-reinforced diaphragms?
Yes, by compression moulding with a fabric layer. See our industrial diaphragm project.
How do you test diaphragm life?
We can run agreed flex checks, or supply samples for your own life testing.
Keep exploring
More from valves and diaphragms.
Duckbill valves
Two lips, pressed together, that open under forward pressure and seal against backflow. Simple in principle, precise in practice.
Open this variantValves and diaphragms overview
A valve is judged on one thing: does it open and close the way it's supposed to, every time. That comes down to wall section, material…
Back to the overviewDesigned and developed in the UK. UK moulding capability, with some higher-volume production placed with trusted partners where that's the right commercial answer.
Get in touch
Tell us the part, the volume, and the timeline.
Rough annual volume, target unit price, and any deadlines. That's enough to work out whether compression, LSR injection or something else is the right tool.
