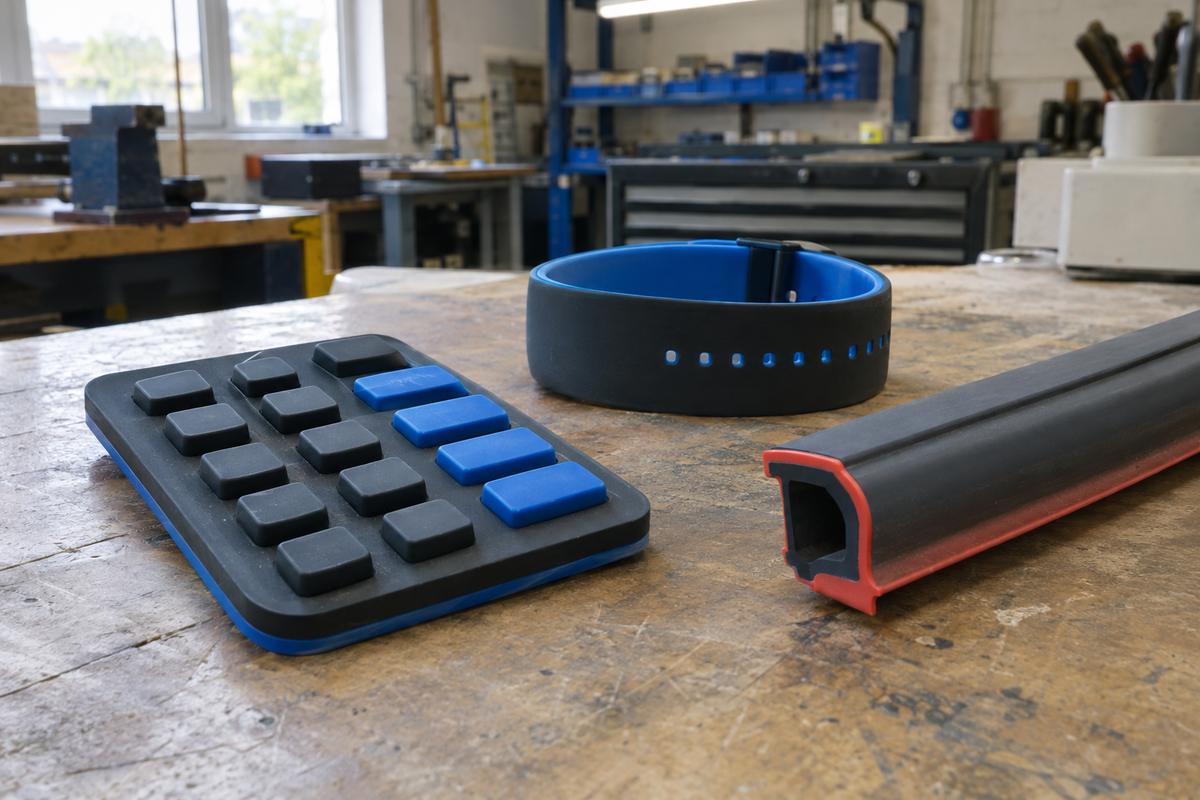

Multi-colour keypads
Keys in one colour, mat in another.
Two-shot moulding · Two-colour silicone
Two-colour and dual-hardness silicone.
One silicone part, two colours or two hardnesses, with a clean line between them. Useful for keypads, straps, grips and seals with a soft face and a firm body.
The detail
Two zones, one part

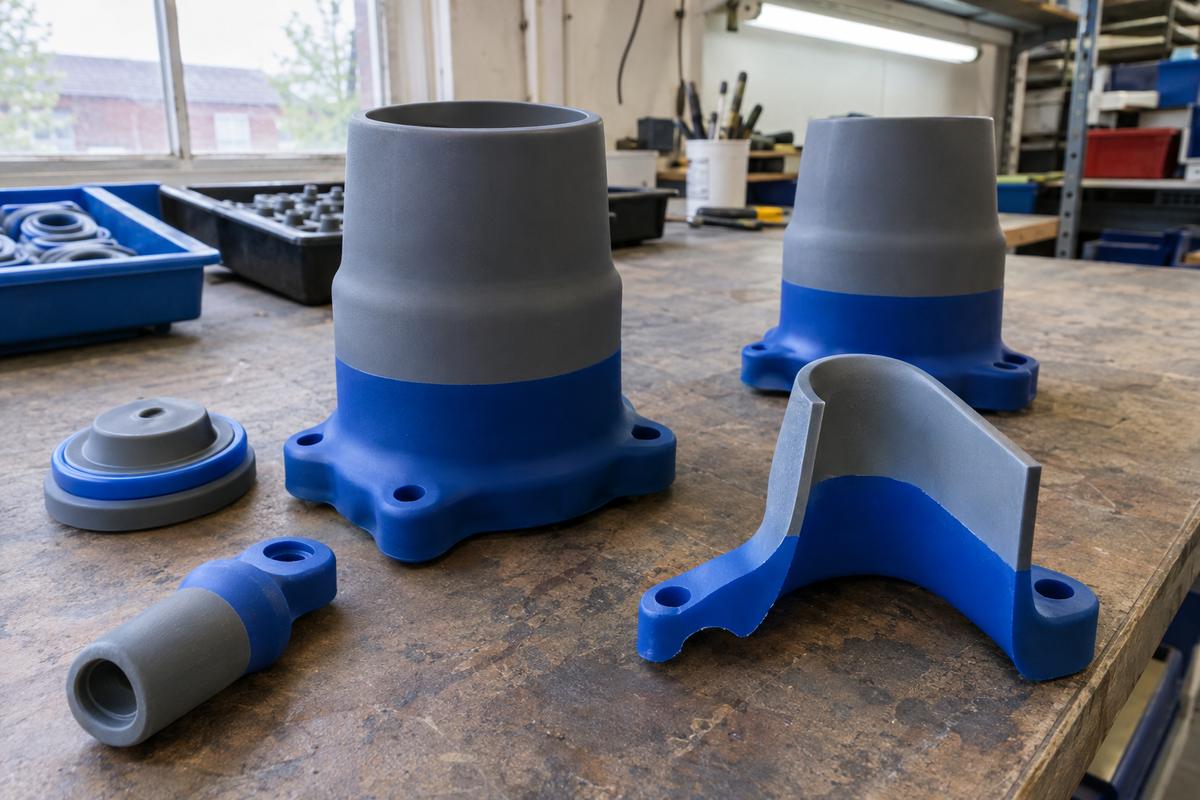

Silicone bonds to silicone well, so combining two colours or two hardnesses in one part is very achievable. The challenge is the line where they meet: keeping it crisp, in the right place, and consistent from part to part.
Depending on the part and volume, we mould the second zone in the same tool or a second tool, or build the colour separation into compression moulding with pre-forms.
Where it fits
Typical two-zone parts

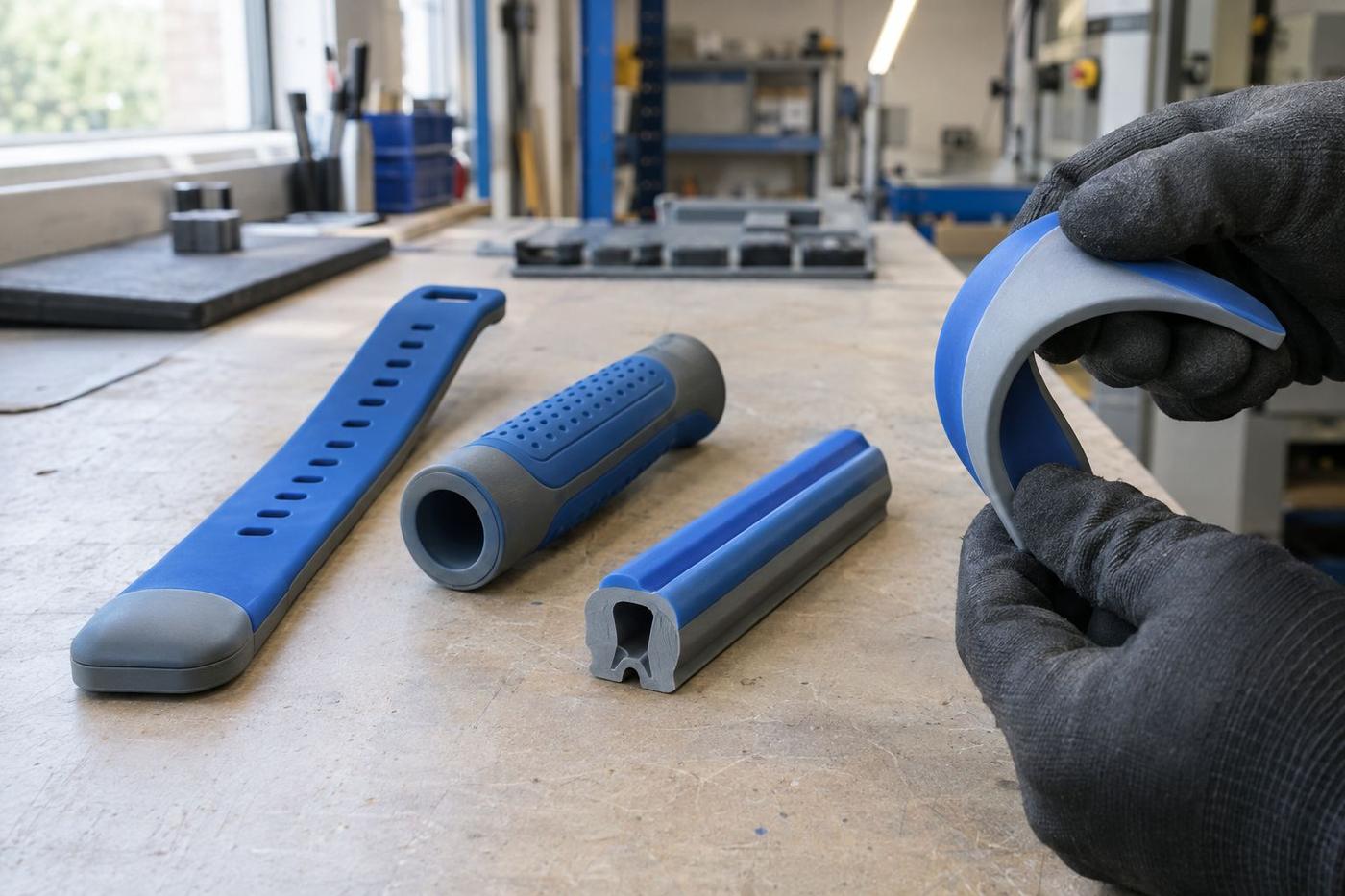

Straps and bands
Contrasting inner and outer faces.
Dual-hardness seals
A soft sealing face on a firmer body.
How we run it
How we do it
Line definition
Where the two zones meet, designed so it can be moulded crisply.
Process choice
Two-shot, two-stage or compression pre-form, based on volume.
Colour recipes
Both colours matched and recorded.
Visual inspection
Line position and cleanliness checked per batch.
To quote it
To quote it
The part with zones marked
Colour or hardness boundaries.
Colour references
Physical samples.
Volume
Decides the process.
Tolerance for line variation
How crisp the boundary must look.
Questions
What people usually ask.
Can two colours bleed into each other?
Poorly controlled, yes. Good tool design and process control keep the line crisp.
Is dual-hardness worth it?
When a single hardness forces a compromise between sealing and structure, often yes.
