Lid and base seals
Perimeter seals for handheld and wall-mounted enclosures.
Electronics-grade manufacturing · Enclosure seals
Electronics enclosure seals.
The seal around an electronics enclosure is often the last part designed and the first to cause problems. Getting it right early saves redesigns later.
The detail
Seals that suit plastic housings
Plastic enclosures flex between screws. A seal that's too firm leaves gaps between fixings; one that's too soft takes a set and stops sealing after a few seasons.
We look at screw spacing, wall stiffness and the closing force your fixings can apply, then propose a seal section and hardness that keeps contact all the way round.
Where it fits

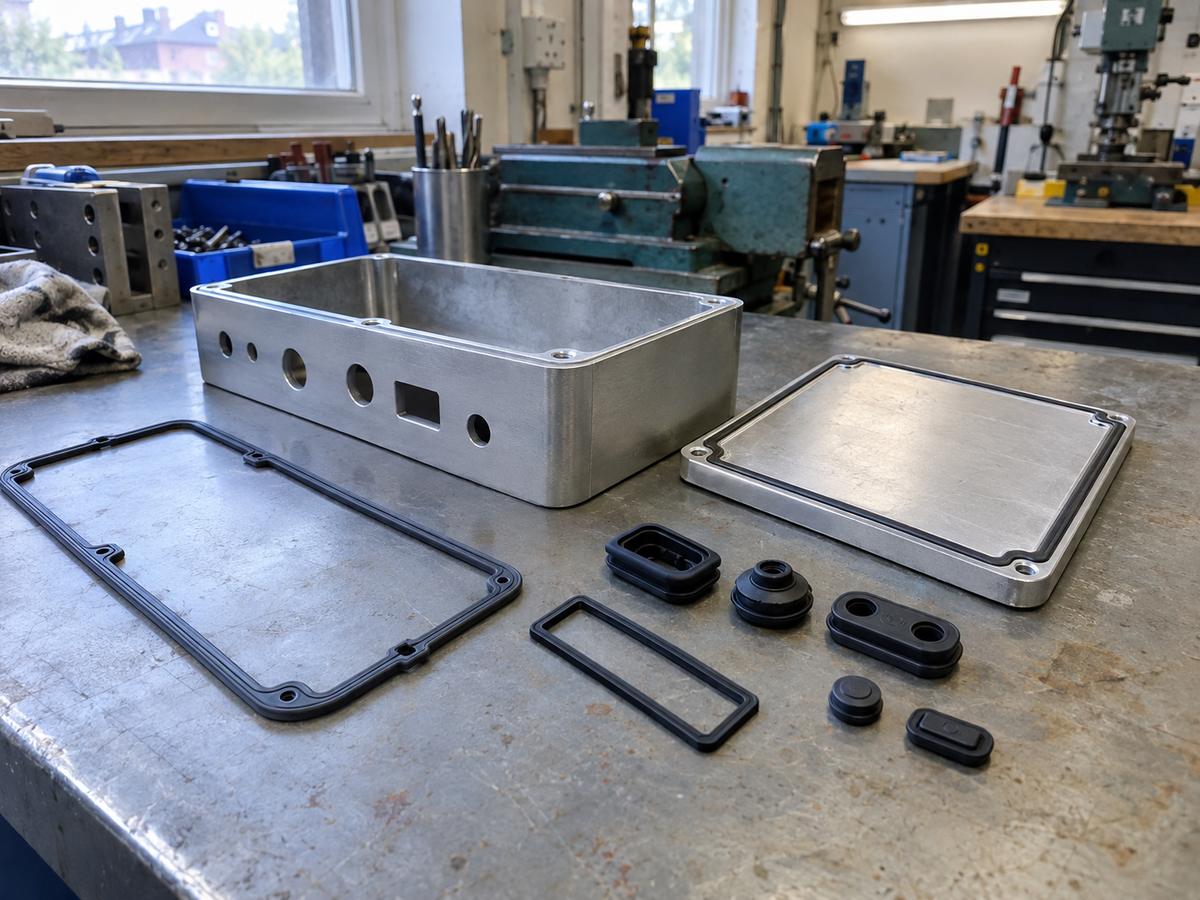

Common enclosure seals
Display and bezel seals
Seals around screens and windows.
Port and button seals
Seals around connectors, buttons and indicators.
How we run it
How we develop them
Housing review
Screw spacing, stiffness and groove design.
Section proposal
Seal section and hardness to suit the closing force.
Fit trials
Samples fitted to your housings and tested.
Production
Compression or LSR, depending on volume.
To quote it
To quote it
Housing CAD
Both halves and fixings.
Ingress requirement
The level of protection you're designing for.
Assembly method
Seal pressed in, located on pegs or overmoulded.
Volume
Per year.
At a glance
The idea in a picture.
From drawing to delivered parts
- 01Drawing or sampleYour part and where it is used
- 02Material and routeCompound and process agreed
- 03PrototypeReal parts to test
- 04Sign-offYou approve the samples
- 05Production toolBuilt for your volumes
- 06Batches and checksInspected and delivered
Swipe to see the whole diagram
Questions
What people usually ask.
Can you help us pass an ingress test?
We can design and supply the seal and help diagnose failures. The test itself is usually done by you or a test house.
Should the seal be overmoulded onto the housing?
At higher volumes it can remove an assembly step. See substrate overmoulding.
