Ingress protection seals.

Outdoor sensors, washdown controls and portable devices all need to keep water and dust out. The seal usually decides whether they do.

Ingress protection sealsVariant
Electronics-grade manufacturingParent route
DocumentedMaterial declaration

The detail

Designing for the real environment

Ingress tests are a snapshot. Real products see temperature cycling, UV, cleaning chemicals, and years of being opened and closed. A seal that passes on day one needs to keep passing.

We pick grades for weather and chemical resistance, design sections that recover after compression, and test samples through cycling where the application needs it.

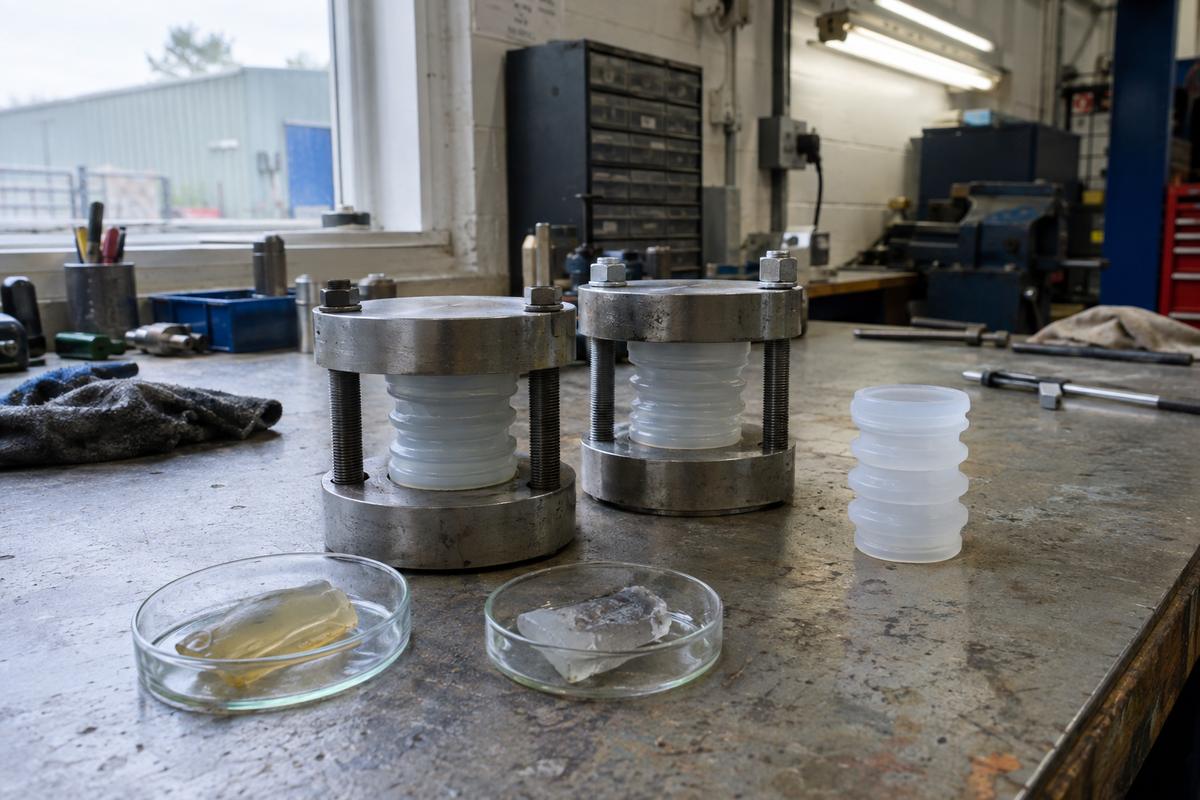

Illustrative example: Seal samples being checked for recovery after compression and exposure

Where it fits

Typical IP seals

Enclosure seals

Perimeter seals for sealed housings.

Button boots

Flexible boots sealing push buttons and switches.

Cable entry seals

Grommets and glands sealing cable entries.

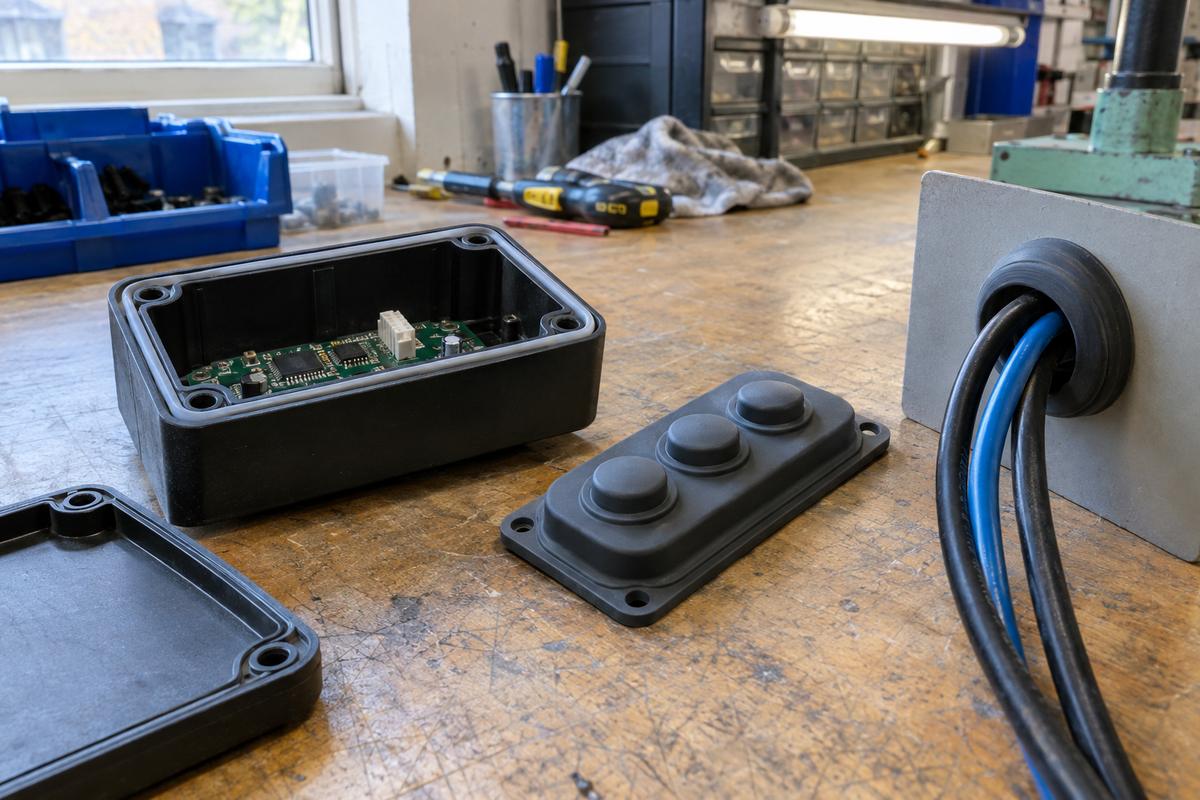

Illustrative example: Perimeter seal, button boot and cable entry grommet fitted in assemblies
Common seal types used for ingress protection

How we run it

How we approach it

  1. Environment review

    Water, dust, UV, chemicals and temperature.

  2. Seal design

    Section and grade for long-term recovery.

  3. Trial fits

    Samples fitted and tested with your housings.

  4. Batch consistency

    Hardness and dimensions checked per batch.

To quote it

To quote it

01

Housing and seal location

CAD preferred.

02

Target protection level

And how it's tested.

03

Environment

Outdoor, washdown, immersion.

04

Volume

Per year.

At a glance

The idea in a picture.

From drawing to delivered parts

  1. 01Drawing or sampleYour part and where it is used
  2. 02Material and routeCompound and process agreed
  3. 03PrototypeReal parts to test
  4. 04Sign-offYou approve the samples
  5. 05Production toolBuilt for your volumes
  6. 06Batches and checksInspected and delivered

Swipe to see the whole diagram

Parts are signed off before production tooling is made, so the parts you approve are the parts you get.

Questions

What people usually ask.

What if our product has already failed an ingress test?

Send us the housing and seal. We're happy to look at a failed seal and suggest what's gone wrong.

Is silicone the best material for outdoor seals?

Silicone and EPDM are both excellent outdoors. Silicone handles wider temperatures; EPDM is often more economical.
