O-ring compression moulding.

Catalogue O-rings cover most needs. When yours falls outside them — an odd size, a special compound, a colour for identification — compression moulding is how custom O-rings get made.

O-ring compressionVariant
Compression mouldingParent route
DocumentedMaterial declaration

The detail

When to mould rather than buy

If a standard size in a standard compound works, buy it. It will be cheaper and faster than anything custom. We say this to customers regularly.

Custom moulding makes sense when the size is non-standard, the compound is specific to your application (a particular silicone, fluorosilicone or EPDM), the colour has to identify the part on an assembly line, or you need a documented material record that catalogue parts don't carry. For the product side of O-rings, see our O-rings page.

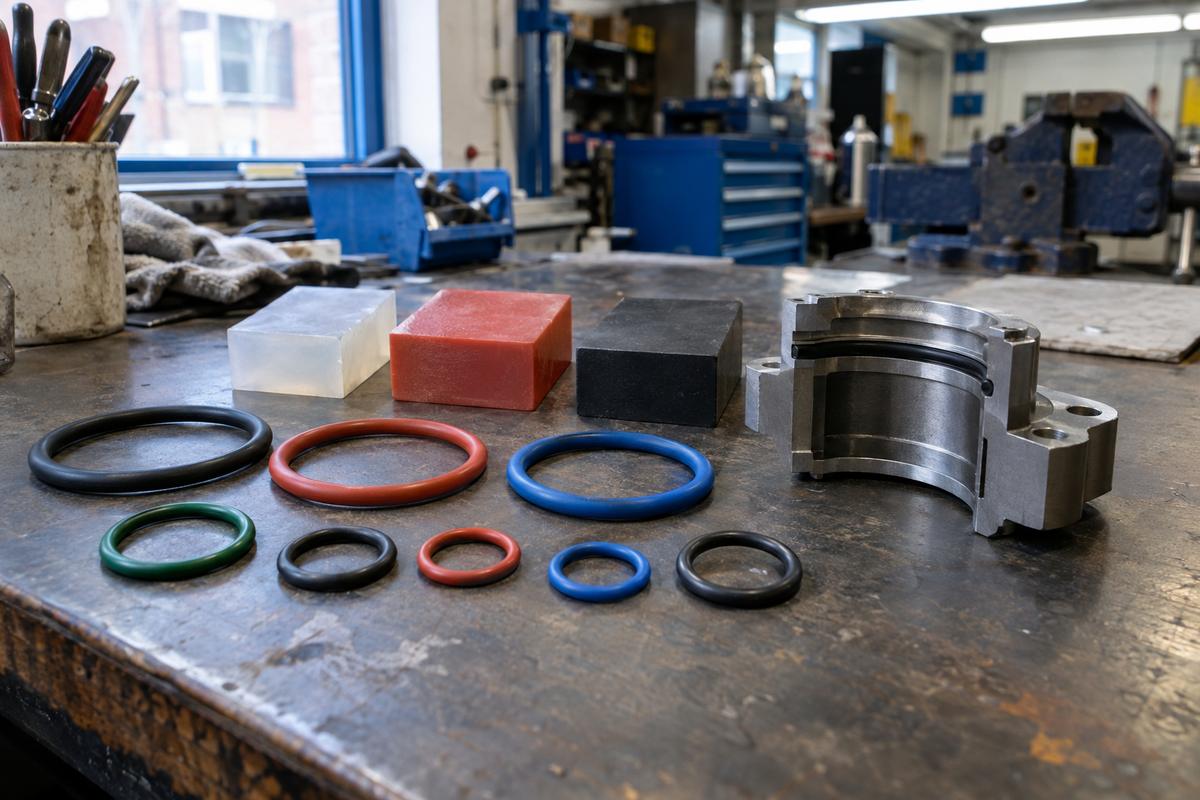

Illustrative example: Different O-ring compounds and colours beside a grooved housing sample

Where it fits

Good reasons to go custom

Non-standard size or section

Housings designed around a dimension no catalogue covers.

Specific compound

A grade chosen for temperature, fluid resistance or approval.

Colour coding

Different colours for different sizes or functions, so the right ring goes in the right groove.

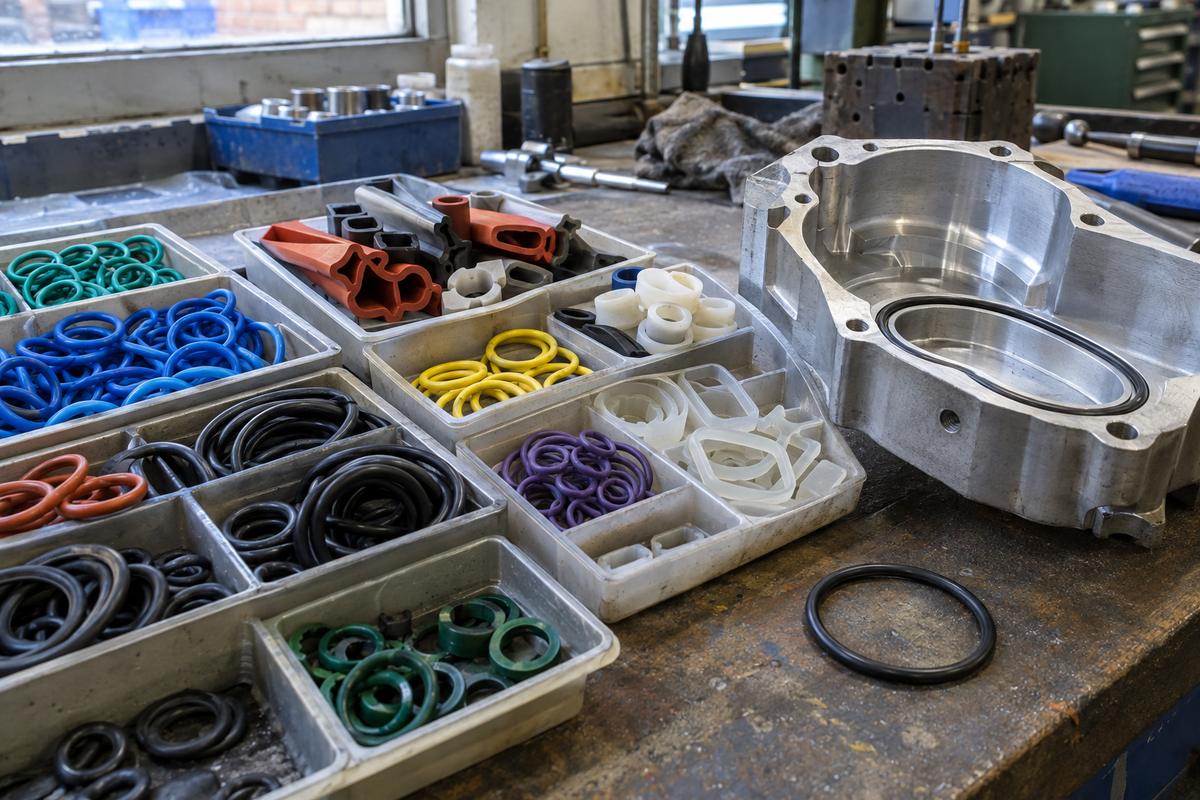

Illustrative example: Custom coloured O-rings beside a machined housing groove on a workshop bench
Custom O-rings matched to unusual grooves and uses

How we run it

How custom O-ring tooling works

  1. Section and ID check

    We review the groove design and recommend a section and stretch that will seal properly.

  2. Multi-cavity tool

    O-ring tools usually carry many cavities in rings across the plate.

  3. Mould and deflash

    Parts are compression moulded, then deflashed — cryogenically for most O-rings.

  4. Measure and pack

    Inside diameter and section checked per batch, packed in counted lots.

To quote it

To quote it

01

ID and cross-section

Or the groove dimensions, and we'll work back.

02

Compound

If you're unsure, the fluid, temperature and pressure it will see.

03

Quantity

Per batch and per year.

04

Colour and paperwork

Any identification colour and material documentation needed.

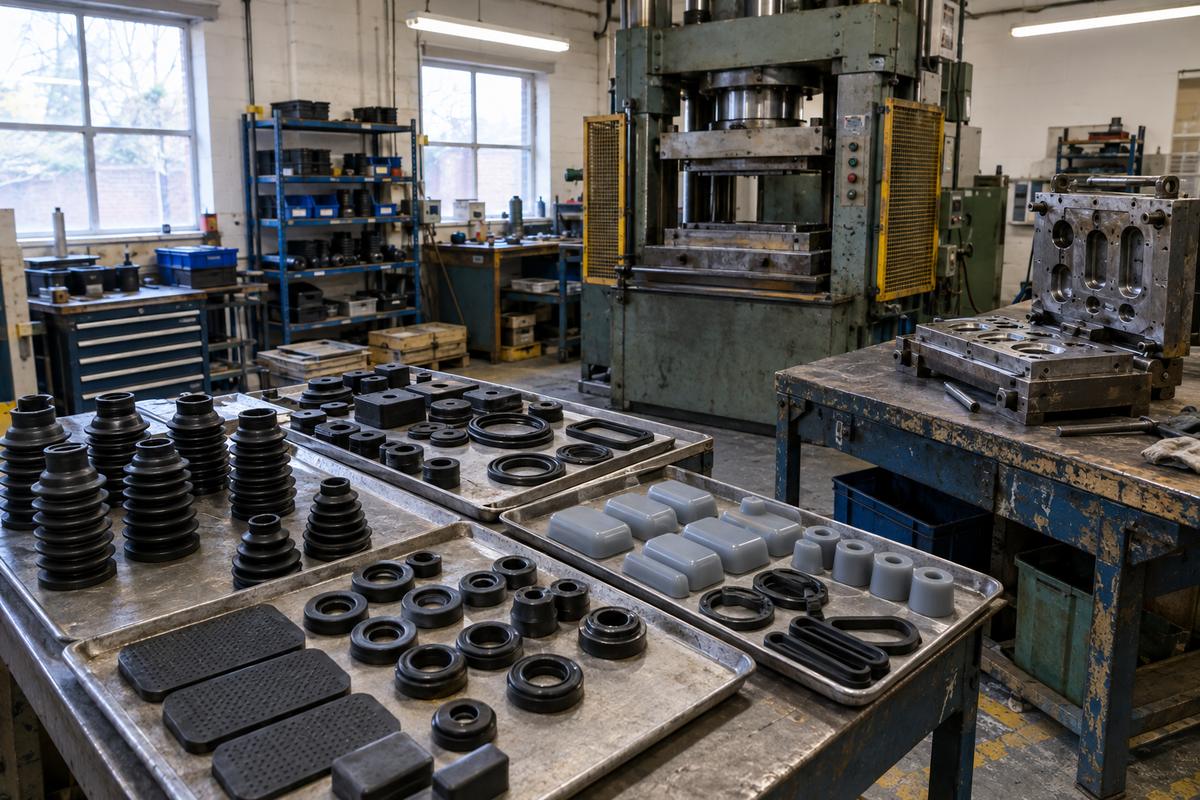

Illustrative example: Compression-moulded silicone and rubber parts on trays beside workshop presses
Compression moulded parts for medical and industrial use

At a glance

The idea in a picture.

Which route suits your quantity

PrototypesHundredsThousandsTens of thousandsPrototype toolingCompression mouldingTransfer mouldingSolid silicone injectionLSR injection

Swipe to see the whole diagram

A general picture. Shape, material and detail also decide the route, and we talk it through with you.

Questions

What people usually ask.

Can you match an O-ring we can't identify?

Often. Send a sample and details of where it's used, and we'll check the size and suggest a compound.

Why compression rather than injection for O-rings?

At most volumes, compression tooling is far cheaper and the parts are just as good. Injection only wins at very high, steady volumes.
